 MB476E HIGHT-EFFICIENT RAISING MACHINE




Feature:

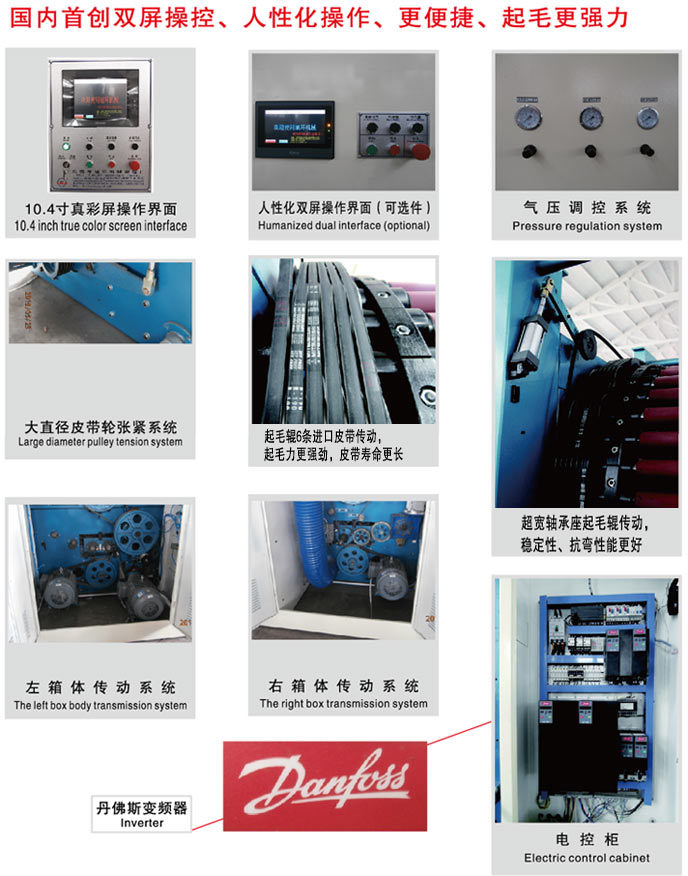

1 Controlled by man-machine conversation and PLC,adjusted variably by inverters.
2 Drum speed,fabric speed,fabrle tension,speed ofraising rollers can be adjusted variably in a large scope.
3 Driving V-belt of raising rollers are controlled by pneumatic,the tension of bel can be kept constantand be adjusted variably.
4 Automatic memorization of 100 sets of presetting process programmers.
5 The function of zero start,feeding fabric automati-cally,trouble alarm and diagnosis.
6 It is possible to create continuous raising line or raising and shearing line,the fabric tension can be kept constant between different machines.
The raising element can be adjusted in a large scale including d rum speed fabric speed,fabric tension,raising intensity,which is controlled by a monitor unit This machine Provides the flexbity to develop all kinds of fabrics.


MAIN TECHNICAL


Model MB476E8024 MB476E8030 MB476E8036 MB476E7024 MB476E7036 MB476E7042
Item
Nominal width(mm) 2000、2200、2500、2800、3000、3200、3600 2000、2200、2500、2800、3000、3200
USES Φ80 with 24、30、36 rollers is
especially suitable for super soft
warp knitting short-wool industry

Φ70 with 24、36、42 rollers is
especially suitable for blanket
and woolen,goral fabric,bottom
cloth of fake leather, warp
knitting industry
Drum speed(r/min) 60-90(Stepless) 60-90(Stepless) 60-90(Stepless) 60-90(Stepless) 60-90(Stepless) 50-80(Stepless)
Speed of fabric(m/min) 6-40(Stepless) 6-40(Stepless) 6-40(Stepless) 6-40(Stepless) 6-40(Stepless) 6-40(Stepless)
Number of raising roller 24 30 36 24 36 42
Roller dia(mm) Φ80 Φ80 Φ80 Φ70 Φ70 Φ70
Motor power(kw)
(Not include dust exhaustor)
34.7/38.7 34.7/38.7 38.7 25.7/34.7 34.7/38.7 42.1
Overall dimensions(mm)(L*W*H) 4350*4690(4890/5190/
5490/5690/5890/6290)*3000
4350*4690(4890/5190/
5490/5690/5890)*3000
Due to the continuous improvement of our products, are subject to change without notice!
